Flexible Gear Coupling
Make EnquiryRAM KRISHNA FLEXIBLE GEAR COUPLINGS are distinguised by their MECHANICAL FLEXIBILITY and compensation of MISALIGNMENT of the connected shafts automatically without any loss of transmitted power during running. These coupling ensure greater flexibility because of their well designed tooth formation generated by INVOLUTE system to ensure uniform toothe PROFILE AND PITCH.
LUBRICATION
The coupling must be fitted with grease or oil. It is recommended to use grease where the maximum temperature is within 80oC & for temperature above 80o C oil should be use.
Technical Specification
COMMON FOR BOTH COUPLING | FULL FLEXIBLE TYPE | HALF FLEXIBLE TYPE | ||||||||||||||||||||||||||

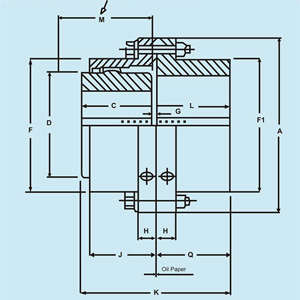

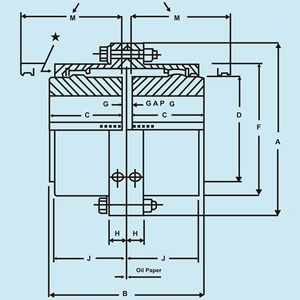

Gear Coupling NO. | H.P. Capacity AT 100 R.P.M. | Max. TORQUE Kg. M. | Max R.P.M. | Bore Min. | A | C | D | F | M | G | H | Bore MAX. | J | B | WR² Kgm² | Wt. In Kg | K | Q | Bore Max. | F1 | WR² Kgm² | Wt. in Kg | ||||||
100 | 7 | 50 | 8000 | 10 | 120 | 45 | 50 | 75 | 55 | 1.5 | 15 | 30 | 39.5 | 93 | 0.03 | 4 | 93 | 46.5 | 50 | 70 | 0.03 | 4 | ||||||
101 | 14 | 100 | 6300 | 20 | 170 | 55 | 65 | 110 | 65 | 2.5 | 17 | 40 | 49 | 115 | 0.14 | 10 | 115 | 57.5 | 60 | 85 | 0.15 | 10 | ||||||
102 | 35 | 250 | 5000 | 30 | 185 | 70 | 85 | 125 | 80 | 2.5 | 17 | 55 | 62 | 145 | 0.20 | 15 | 145 | 72.5 | 75 | 110 | 0.24 | 15 | ||||||
103 | 63 | 450 | 4000 | 40 | 220 | 85 | 105 | 150 | 105 | 2.5 | 20 | 70 | 78 | 175 | 0.48 | 25 | 175 | 87.5 | 90 | 130 | 0.51 | 25 | ||||||
104 | 119 | 850 | 3350 | 50 | 250 | 105 | 130 | 175 | 125 | 2.5 | 20 | 85 | 96 | 215 | 0.95 | 39 | 215 | 107.5 | 110 | 160 | 1.0 | 40 | ||||||
105 | 182 | 1300 | 2800 | 60 | 290 | 110 | 155 | 200 | 140 | 5 | 25 | 105 | 106 | 230 | 1.90 | 59 | 230 | 115 | 130 | 185 | 2.0 | 60 | ||||||
106 | 280 | 2000 | 2500 | 75 | 320 | 125 | 175 | 230 | 155 | 5 | 25 | 120 | 117 | 260 | 3.00 | 85 | 260 | 130 | 150 | 215 | 3.3 | 85 | ||||||
107 | 490 | 3500 | 2100 | 90 | 350 | 140 | 205 | 260 | 175 | 5 | 25 | 130 | 134 | 290 | 5.25 | 103 | 290 | 145 | 170 | 240 | 5.8 | 106 | ||||||
108 | 630 | 4500 | 1900 | 105 | 380 | 155 | 230 | 290 | 190 | 5 | 25 | 150 | 147 | 320 | 8.50 | 138 | 320 | 160 | 200 | 285 | 9.5 | 149 | ||||||
109 | 784 | 5600 | 1700 | 125 | 430 | 165 | 250 | 330 | 205 | 5 | 25 | 170 | 156 | 340 | 15.00 | 210 | 340 | 170 | 220 | 315 | 16.8 | 200 | ||||||
110 | 1148 | 8200 | 1400 | 140 | 490 | 180 | 310 | 390 | 220 | 5 | 25 | 210 | 171 | 370 | 30.50 | 277 | 370 | 185 | 260 | 370 | 35.0 | 274 | ||||||
111 | 1536 | 11000 | 1250 | 160 | 545 | 200 | 350 | 445 | 240 | 5 | 30 | 260 | 192 | 410 | 58 | 550 |
| |||||||||||
112 | 2053 | 14700 | 1120 | 180 | 590 | 240 | 400 | 490 | 280 | 5 | 30 | 300 | 231 | 490 | 88 | 710 | ||||||||||||
113 | 2793 | 20000 | 1000 | 200 | 680 | 260 | 440 | 555 | 310 | 7.5 | 35 | 330 | 242 | 535 | 138 | 980 | ||||||||||||
114 | 3994 | 28600 | 900 | 220 | 730 | 280 | 500 | 610 | 330 | 7.5 | 35 | 370 | 266 | 575 | 291 | 1320 | ||||||||||||
116 | 8378 | 60000 | 710 | 300 | 900 | 350 | 625 | 755 | 425 | 10.0 | 45 | 455 | 335 | 720 | 680 | 2550 | ||||||||||||
117 | 11917 | 83550 | 630 | 375 | 1000 | 400 | 720 | 855 | 460 | 10.0 | 45 | 520 | 386 | 820 | 1235 | 3620 | ||||||||||||
118 | 15778 | 113000 | 560 | 450 | 1100 | 450 | 810 | 950 | 510 | 10.0 | 55 | 610 | 430 | 920 | 1965 | 4860 | ||||||||||||
119 | 20805 | 149000 | 500 | 520 | 1250 | 485 | 910 | 1050 | 560 | 15.0 | 55 | 710 | 446 | 1000 | 3012 | 6380 |
